SKU:17013201

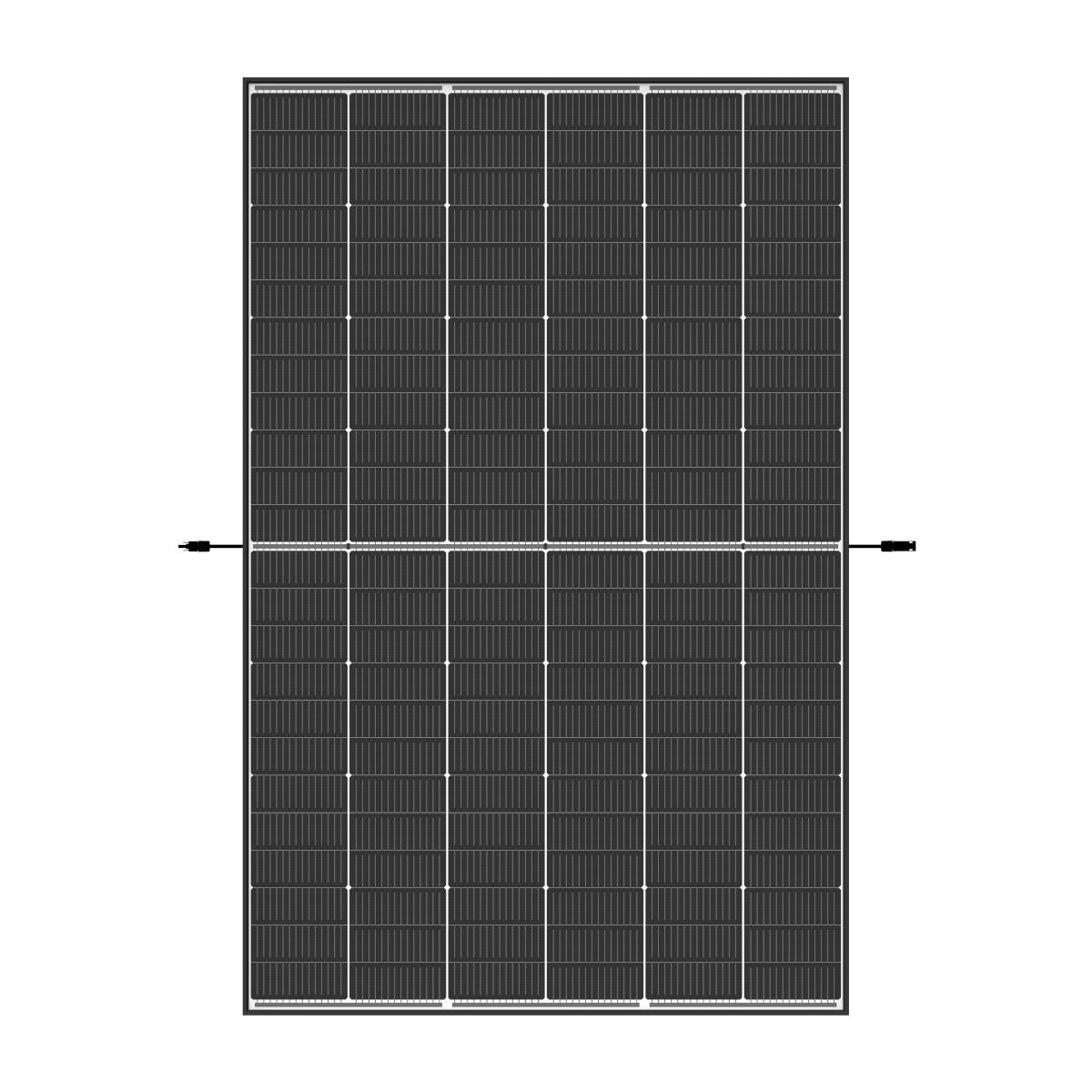

The Vertex S+ module combines great aesthetics and efficiency with proven reliability and quality. Honey M integrates various technologies like half-cut and multi-busbar (MBB) cells, which can shorten over 50% of the current conduction distance and thus lower the internal ribbon resistance loss.
Finer and narrower busbars mean that more sunlight can be reflected to the round ribbon, thus increasing energy efficiency.
- Designed with aesthetics in mind
- Excellent cell color control by dedicated cell blackening treatment
- Thinner wires that appear all black at a distance
- Lower resistance of half-cut and good reflection effect of MBB ensure high power
- Mechanical performance: Up to 5400 Pa positive load and 2400 Pa negative load
- Better anti-shading performance and lower operating temperature
- Enhanced design for easy installation and long-term reliability
- Resistant to salt, acid and ammonia
Specifications:
- Solar Cell: Mono-crystalline
- Max.Power (Pmax): 430Wp
- Optimum Operating Voltage (Vm): 40.4Vm
- Optimum Operating Current(Im): 10.82A
- Open-Circuit Voltage (Voc): 48.3V
- Short-circuit Current (Isc): 11.37A
- Module Efficiency: 21.5%
- Dimensions: 1762mm(L) x 30mm(W) x 1134mm(H)
- Weight: 21kg
Please inquire freight options.
TSM430NEG9R
